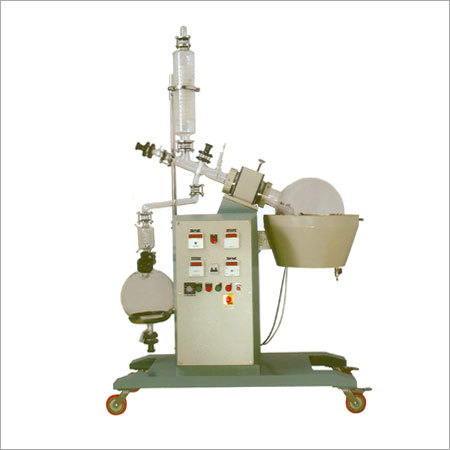

Rotary Film Evaporator

Rotary Film Evaporator
Rotary Film Evaporator
Product Code : 01
Product Description

Our firm is specialized in manufacturing and exporting superior quality Rotary Film Evaporator that is equipped with Digital RPM indicator & VFD based speed control, Digital Process time indication and Digital Temperature indicator & Controller. The performance of rota-evaporator totally depends on various parameters like temperature differential between bath and contents of flask, RPM, flask capacity and working pressure. An indicative comparison of boil-up of CCI4 rates for 20L, 50L, and 100L is given in adjacent figure. The offered evaporator is manufactured utilizing premium grade components and latest technology in adherence with the international standards. Our offered Rotary Film Evaporator is available in different technical specifications at nominal prices.


  • Universal corrosion resistance with only borosilicate glass and PTFE as contact parts.
  • Auto controlled, variable rotational speed and variable bath temperature with digital display enhances operational versatility and can be used for wide range of duties.
  • Can be operated under full vacuum or at atmospheric pressure
  • The unit has continuous feeding facility & total reflux arrangement
  • Ideally suited for heat sensitive material due to uniform heating at low temperature with enhanced heat transfer area.
  • Maintenance free working- operational reliability
  • Fully Automatic (PLC based) can be supplied on request.


Construction and Working:

Rotary Film Evaporator is essentially a thin film evaporator. The rotating flask continuously covers a large surface area with a thin film which is ideal for rapid heat transfer. Fortuitously, the thin film also ensures uniform heat distribution with out local heating. The facility to work the unit under full vacuum further facilitates evaporation at as low temperature as possible. That is to say, both boiling point and residence time are significantly reduced. These features combined, renders rotary film evaporator to be ideally suited for evaporation of heat sensitive material. It is equally successful for evaporation of suspension in crystallization processes, drying of powder/granules etc.

Performance & Technical Data

Technical information related to 20 liters Rotary Film Evaporator are furnished below:


20 Ltr

Rotating Flask Capacity (ltrs)

20 L

Rotating Speed (rpm)


Electric Motor Rating (HP)


Condenser Cooling Surface Area (m2)


Receiver Flask Capacity (ltrs)


Power Supply

230 V


50 Hz

Bath Rating (KW)



  • Attractive Vertical Orientation
  • Digital vapor temperature indicator
  • Motorized VFD based UP & down of bath
  • S.S. bath with Jacket & electrical heaters with overflow nozzle & drain valves
  • Durable S.S. gearbox, with motor encased in to the Mechanical Assembly
  • Complete glass assembly as per the specs in the table
  • Anti splashing hood
  • Powder coated
  • The whole unit is mounted on lockable S.S. wheels
  • Dimensions: 1100X600X1500 approx (With glass assembly)
  • Fully tested & ready to use


  • UPS back up for auto lowering bath
  • Chiller unit
  • Vacuum pump with set up
